Undercarriage Parts

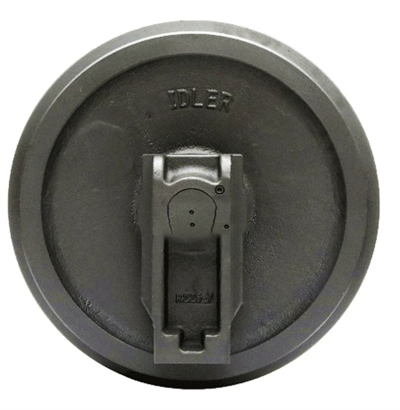

The excavator undercarriage is a critical system ensuring mobility, stability, and structural integrity. Central to its operation is the track chain, a continuous loop of interlinked high-strength steel plates that transfers power from the sprocket to the ground, enabling movement while resisting wear. Attached to the chain are track shoes (pads), which increase the contact area to distribute the machine’s weight and adapt to terrain—wider shoes reduce ground pressure on soft soil, while narrower versions enhance maneuverability on rocky surfaces. At the front of the undercarriage, the idler wheel guides the track and works with the track tensioning system (hydraulic or screw-driven) to maintain optimal tension, preventing derailment and minimizing component stress.

Supporting the track’s upper section are carrier rollers, which prevent sagging, while track rollers (hardened steel) bear the machine’s weight and absorb ground impacts. The sprocket, a toothed wheel driven by the final drive (a hydraulic or gear-driven unit), converts high-torque input into track motion, though its teeth require regular inspection due to wear. The final drive itself transfers engine power to the sprocket, ensuring low-speed, high-torque output for heavy-duty tasks. All components are mounted on a rigid frame/chassis—a welded steel structure connecting the undercarriage to the upper rotating platform.

Bushings and pins link track chain segments, with lubrication critical to reduce friction and extend lifespan. Wear-prone parts like track shoe edges, sprocket teeth, and roller surfaces demand periodic replacement. Proper maintenance—track tension checks, lubrication, and debris removal—enhances durability. Design adaptations, such as widened track shoes for soft terrain or reinforced rollers for rocky environments, optimize performance across diverse conditions. By balancing robust engineering with preventive care, the undercarriage ensures operational efficiency, minimizes downtime, and maximizes the excavator’s adaptability in construction, mining, and earthmoving applications.
